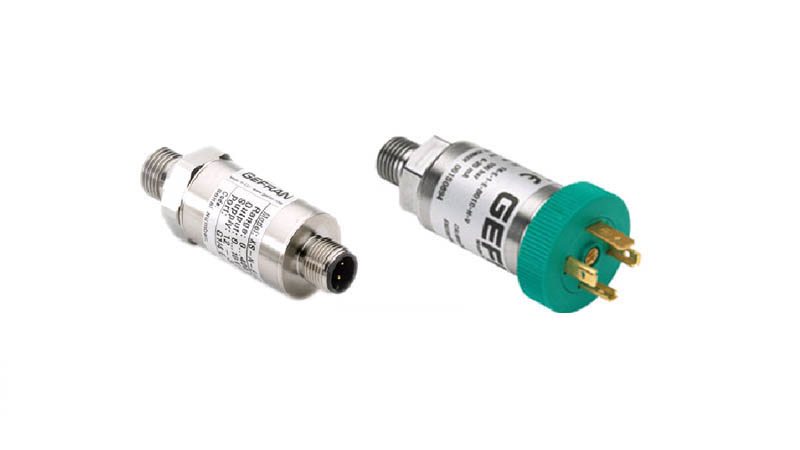

Gefran-SpA-Italy Pressure Transducer


Transmitters are based on film sensing element deposited on stainless steel diaphragm. Thanks to the latest state of the art SMD electronics and compact all stainless steel construction, these products are extremely robust and reliable, with SIL2 certification supplied as standard. KS transmitters are suitable for all industrial applications, specially on hydraulics (presses, pumps, power pack, fluid power, etc.) with severe conditions usually with high level of shock, vibration, and pressure and temperature peaks.

  • Ranges: from -1 to 1000 bar
  • Nominal Output Bracket: 0-10
  • Nominal Output Signal: 0...10Vdc (3 wires) / 4...20mA (2 wires)
  • Compact size
  • Wetted parts: Stainless steel
  • SIL 2 certified according to IEC/EN 62061:2005


Transmitters are based on the extensimetric thick film measuring principle. Thanks to highly stable electronic components, these transmitters can be used in applications requiring longdistance signal transmission or in smart control systems. TK pressure transmitters are designed mainly to measure pressure in oil, air, and hydraulic circuits.


They can also be used in the technical and process measurement application as well as for compressors, presses and mobile hydraulic.
